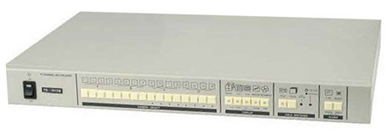

16 Channel Color Multiplexer MUX16D


Features

  • Triplex Operation (View, Record, & Playback Simultaneously)
  • Full Channel Real Time Display
  • Various Windows Split Mode (1,4,8,910,13,16) & PIP
  • Sequential Switching
  • 2 x Zoom
  • Parallel / RS-232C Remote Control Input
  • NTSC/PAL Compatible
  • Monitor Output (Main - 2, Full, S-VHS, VGA - Option)
  • VCR Input & Output
  • 16 Alarm Input - Programmable N.O/N.C Selection
  • Full Screen Call Up In Alarm Mode or Each Ch. Button
  • PIP Sequential Switching
  • Video Motion Detection
  • Real Time Clock
  • Freeze Picture

Specification

Name Qty Type Signal Description
Camera Input 16 BNC CVBS 1Vpp @75 Ohm Load
Loop Out
 16 BNC CVBS Auto Load (Same Camera Input Signal Out)
VCR Input 1 BNC CVBS 1Vpp @75 Ohm Load
VCR Output 1 BNC CVBS 1Vpp @75 Ohm Load
Monitor Output
S-VHS
VGA
3
1
1 		BNC
Mini - Din
DB15-3R

CVBS
S-VHS
RGB.HS.VS

Main -2, Spot-1 1Vpp @75 Ohm Load
Y:1Vpp @75 Ohm Load C:235Vpp@75 Ohm Load
0:7 Vpp @75 Ohm Load Option

Alarm Input
Alarm Output
Remote Control - Serial

16
1
1

 DB15-3R

TTL Drive
TR Drive
RS-232 2C

TTL Compatible, 1K Ohm Full-up
Relay Isolation, N.C/COM/N.O. Dry Contact-/ 125 VAC, 0.5A
Same As Front Button Function Protocol

Remote Control Parallel

1

 5566-20P

TTL

Same as Used Front Button
Power Jack 1 DC Jack DC12 - 18V Power Input Connector DC12/1.5A - 18V/1A
Earth Terminal 1 Bolt 3P x 7mm Electrical Earth Terminal

Front Panel Function

Division Button Qty Description
Camera Select 1,2,3,4...16 16 Individual Freeze / Full Screen / Cursor Move In Menu Programming
Display Split 3 Split Display Select / Alarm Reset / Data Input Enter at Menu
  Freeze / Menu 1 All Screen Freeze / Go to Menu Mode / Quit in Programming
  Sequence / PIP
 1 Auto Sequence Select / PIP Mode
Recording Playback 1 Playback Mode for a Triplex Mode
  Field Switching 1 Monitoring of Current Recording Output Sign
Alarm Alarm List 1 List of Events of Alarm or Video Loss
  Zoom / Alarm Reset 1 Screen Zoom & Screen Pan, Tilt / Releasing of the Operation of Alarm Sound

Functional Specification

Division Program Value Description
Time / Date (US, EURO, ASIA) ON / OFF 3 Way Display Mode 24H Display On/Off 100 Years Calendar
Camera Title ON / OFF Easy Selectable Table (8 Character Alpha-Numeric & Special Symbol)
Auto Sequence Time Off - 99 Sec

Individual Dwell Time, Split Mode Insertion
Selectable Video Loss Channel Auto Skipping
Programmable Full/PIP Auto Sequence
Split Display Mode 21 Type Quad & 9 Split Very Various Split Mode, Selectable 3 Border Type
OSD Positioning   Programmable Fixed 4 Display Area, OFF
Alarm Contact OFF - N.O. - N.C Match For Sensor
Alarm Relay Time Off - 30Min
Alarm Buzzer Time Off - 99Sec
Video Motion Detection   Programmable Motion Detection Area, Scheduling, ON - OFF, Sensitivity

Physical Specification

Division Description
Dimension 430 X 44 X285(+/- 10)mm (W x H x D)
Weight 3.0 Kg
Power Input DC 12V 1.5A ~ 18V 1A
Power Consumption Less than 20 Watts
Operating Temperature -10° C ~ +50° C / 20~85 % RH
