TRD100 SERIES
1ch Time-Lapse Replacement DVR


Features

  • High Stability and Reliability
  • Simple VCR Replacement
  • Compatible with Many Manufacturers' Multiplexers
  • Records and Playbacks in High Quality Resolution (720 x 480)
  • Simultaneously Records and Playback (720 x 480, 30 Frames)
  • Network Viewing of Live and Recorded Video
  • Large Storage Capacity
  • Video Archives with USB Memory Stick
  • Audio Recording Version (Optional)

Still the best SECURITY SYSTEM

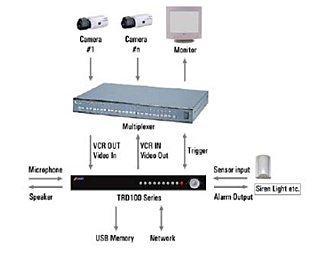

TRD Series recorders replace traditional analog time-elapse recorders in conventional CCTV systems, providing a cost-effective digital solution. These TRD100 Recorders are compatible with a wide range of multiplexers.

The simple installation, VCR-like functions, and common recording speeds ease the transition to digital and minimize the need for training.

This provides fast, uninterrupted video access, available locally and via a network connection.

The Remote Viewer provides access to live, recorded, and backed up images, as well as snapshot creation and image enhancement.



TRD 100 Series
Description Specification
Compression Algorithm M-JPEG
Video Output 1 Channel, NTSC/PAL, 1V peak to peak, 75 Ohm, BNC
Video Input 1V peak to peak, 75 Ohm, BNC for (TV) Montitor & Loop out
Display Resolution NTSC 720 x 480, PAL 720 x 576 Active pixels
Recording Resolution NTSC 720 x 480, PAL 720 x 576 Active pixels
X2 Zoom Availabile
Simple Duplex Duplex
Unit Processing Speed 1/60 sec for 720 x 240 (NTSC), 1/50sec for 720 x 288 (PAL)
Compression Ratio Simple image 5-8 KB/image (NTSC), 6-9 KB/ image (PAL)
(NTST: 720 x 240, PAL 720 x 288) Normal image: 13-17 KB / image (NTSC), 16 -19KB/image (PAL)
Complicated image: 20-25 KB/image (NTSC), 22-27 KB/image (PAL)
Frames rate Reording (Fps) Total nuber of frames/sec:
30 (720 x 480 / NTSC, 25 (720 x 575 / PAL
Recording mode (images / sec):
60/30/15/10/2/1/0.2/0.1 (NTSC), 25 Frames / sec 720 x 576 (PAL)
Display (FPS 30 Frames / sec at 720 x 480 (NTSC), 25 Frames / sec 720 x 576 (PAL)
Scheduled Recording Choose recording section at 30 min time intercal in a day of the week
Up to 2 sections per day
Full time recording option
Password Protection Front panel password protection
Verifies users, and permits those allowed to access the system
Alarm Selectable input recording speed
Relay Output 1, NO / NC selectable in SETUP menu
Playbacl Normal: x1 speed
Network Protocol Protocol: TCP/IP, ARP, RARP, ICMP, DHCP, PPP, and PPPoE
HDD Fast: x2, x4 , x8, x16, x32 (NTSC)
x2, x4, x8, x15, x25 (PAL)
Move 1 image per push button
Go to function: Move to year / month / daytime by event
Defualt HDD in the DVR unit 40 GB
HDD Management HDD Type: EIDE, ATA-100, 3.5 inch, 7200 rpm
Pre-formatting not required (Automatic formatting by the system)
(No loss of data by FAT breakage / Efficient HDD space increased)
Data storing in sequence (Not decrease HDD lifetime)
Back-up Optional: USB 1.1 Flash Memory Key for data export
(Note: Flash Memory Key is not included in the package)
Power DC 12V 5A, external power adapter
Mechanical Unit Dimension 434 (W) x 360 (D) x 44(H) (1.7 in x 14.2 in x 1.73 in)
(19 inch rack mountable, 1 U)
Unit Weight TBD
Shiping Weight 7.3 Kg (Standard export packaging)
Master Carton TBD
Ambient Temp 40°F to 140°F (5°C to 4°0C)

The Specifications are subject to change without prior notice for the products improvement.
