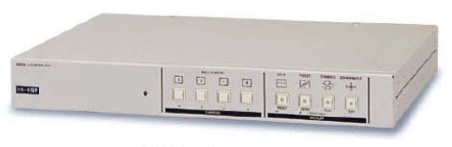

Full Real Time Multiplexer 4 Channel Duplex MUX04D

Features

  • Full Real Time Display
  • Duplex Operation
  • Various Screen Display
  • Built In Time/Date/Title Generator
  • Digital Sequential Switching
  • PIP Function
  • 2 x Zoom
  • Field Rate Recording (Refresh rate of 60 (50) Fields/Sec)
  • Pan/Tilt on 2.3 Split
  • High Quality Video Motion Detection
  • NTSC/PAL Compatible
  • High Resolution
  • 3 Monitor Output (Main, Spot, VGA-Option)
  • VCR Input & Output
  • Digital Zoom On Play Back
  • Alarm Input & Output
  • Full Screen In Alarm Mode
  • 2 Way Remote Control Input (parallel / RS 2-232C)



Rear Panel Connectors

Name Qty Type Signal Description
Camera Input 4 BNC CVBS 1Vpp @75 Ohm Load
Loop Out 4 BNC CVBS Auto Load
        Out of Same Camera Input Signal
VCR Input 1 BNC CVBS 1Vpp @75 Ohm Load
VCR Output 1 BNC CVBS 1Vpp @75 Ohm Load
Monitor Output 2 BNC CVBS 1Vpp @75 Ohm Load
  1 DB15-3R VGA Y:0.7Vpp / C:0236Vpp RGB, HS, VS
        Optional - Remote Control Not Used

Alarm Input

Alarm Output

4

1

 DB15-3R

TTL Drive

TR Drive

TTL Compatible, 1K Ohm Full-up

Photo Coupler Isolation, 30V 50mA

Remote Control Parallel

Remote Control - Serial

1

1

 DB15-3R

TTL

Rs - 232c

Same as Used Front Button

Optional - VGA Output Not Used
Power Jack 1 DC Jack DC12 - 18V Power Input Connector
Earth Terminal 1 Bolt 3P x 7mm Electrical Earth Terminal

Front Panel Function

DivIsion Button Qty Description
Camera Select 1,2,3,4 4 Individual Freeze / Full Screen / Cursor Move In Menu Programming
Display Split 1 Split Display Select / Alarm Reset / Data Input Enter at Menu
  Freeze / Menu 1 All Screen Freeze / Go to Menu Mode / Quit in Programming
  Sequence / Play 1 Auto Sequence Select . Playback mode for Triplex Mode
  Zoom / Pip 1 Screen Zoom & Screen Pan Tilt

Functional Specification

Division Program Value Description
Time / Date ON / OFF 3 Way Display Mode (US, EURO, ASIA), 24H Display On/Off 100 Years Calendar
Camera Title ON / OFF Easy Selectable Table (8 Character Alpha-Numeric & Special Symbol)
Auto Sequence Time Off - 99 Sec

Individual Dwell Time, Split Mode Insertion
Selectable Video Loss Channel Auto Skipping
Programmable Full/PIP Auto Sequence
Split Display Mode 8 Type Quad & 2,3..Split Various Split Mode, Selectable 3 Border Type
OSD Positioning 4 Programmable Fixed 4 Display Area, OFF
Alarm Contact PFF - N.O. - N.C Match For Sensor
Alarm Relay Time Off - 30Min
Alarm Buzzer Time Off - 99 Sec Video Loss Detection To Buzzer Sound
Video Motion Detection   Programmable Motion Detection Area, Scheduling, ON - OFF, Sensitivity
Recording Mode 4
Video Display Rate   Real-time Display NTSC:30Frames/s, 60 Fields; PAL: 25Frames, 50 Fields
Recording Rate   NTSC: 60 Fields; PAL: 50 Fields

Physical Specification

Division Description
Dimension 340 x 44 x 250 mm (W x H x D)
Weight 2.5 Kg
Power Input DC 12V 1.2A - 18V 1A
Power Consumption Less than 10 Watts
Operating Temperature -10° C ~ +50° C / 20~85 % RH
