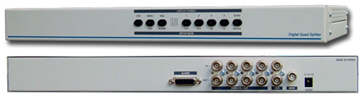

QUADCA Advanced Quad Splitters
  • High resolution
  • Automatic Gain control
  • Sensor Alarm and Video Loss Alarm
  • 2x Zoom on playback
  • Brightness Control setup
  • Looping Video Outputs with auto impedance switching BNC connectors
  • Remote control available using RS232 connection
  • Password protection
Model Numbers

QUADCA(NTSC)
Color Advanced Quad, NTSC
QUADCA(PAL)
Color Advanced Quad, PAL

QUADCA
VIDEO SIGNAL
Video Standard
 Color (NTSC or PAL)
Refresh Rate
 60 fields/sec.(NTSC/EIA), 50 fields/sec.(PAL/CCIR)
Digital Memory 720x480(NTSC), 720x576(PAL)
8 bit and 16 bit,
16 million Color Palette
Video Inputs 4 inputs from cameras,
1 input from VCR
Video Input Signal 1 V p-p, composite, 75 ohms
Video Outputs 4 looping outputs,
1 output to monitor,
1 output to VCR
Video Output Signal 1 V p-p, composite, 75 ohms
VIDEO FEATURES
Playback Zoom
 2X electronic zoom
Brightness Setup
 Yes
Segment Border
 Narrow black lines
Sequencing Dwell
 1~10 sec. or SKIP
Camera Titles
 8 alpha numeric
Time/Date Generator 3 formats, user selectable
ALARM FEATURES
Alarm Inputs 4 inputs
Alarm Outputs
 1 relay output (Form C)
1 trig output to VCR
Alarm Relay Rating 3A max.
Alarm Duration 1~60 sec., HOLD, FOLLOW
Video Loss Indication Yes
ELECTRICAL
Power Supply 12 VDC(1A) power supply included
Nominal Power UL, CE Approved, Input voltage; 120 VAC or 230 VAC
(Input Voltage Range; 105 to 135 VAC or 210 to 260 VAC)
CONTROLS
Front Panel Keys
 8 keys
Password Set Yes
Factory Default Set Yes
Remote Controls RS 232 system
CONNECTORS
Video Inputs 4 BNCs
Video Outputs 4 BNCs (Auto-terminating)
Monitor Output 1 BNC
VCR Output 1 BNC
VCR Input 1 BNC
Alarm/Remote/Trig Female 15-pin D-Sub
Power Input DC power jack (pin dia. 2.0 mm)
MECHANICAL
Dimensions
 430 W x 300 D x 44 H mm (16.9 W x 11.8 D x 1.73 H inch)
Weight 4.5 kg (9.9 lb), including power supply
Construction/Finish
 Light grey enameled steel chassis and cover
ENVIRONMENTAL
Operating Temperature 0° to 50°C (32° to 122° F)
Relative Humidity 10% to 80%, relative, non-condensing
REGULATORY
Immunity FCC and CE (approved)
FCC Part 15 subpart B, class A
EMI
 EN55022,1998, class A
